    Product Details

    Product DetailsOE NumbersTechnical LibraryLinked VehiclesRelated Products

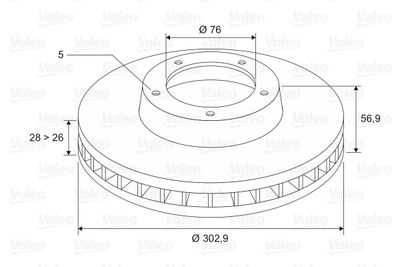

    Brake Disc
    no longer deliverable by the manufacturer
    Brake Disc
    Brake Disc
    Brake Disc

    Brake Disc

    no longer deliverable by the manufacturer
    Ref. number
    197499
    EAN
    3276421974993
    Fitting Position
    Front Axle
    Brake Disc Type
    Vented
    Outer Diameter [mm]
    303 mm
    Brake Disc Thickness [mm]
    28 mm
    Centering Diameter [mm]
    76 mm
    Height [mm]
    56.9 mm
    Minimum thickness [mm]
    26 mm
    Rim Hole Number
    5 -Hole
    Number of mounting bores
    1
    Test Mark
    ECE-R90
    Weight [kg]
    9.2 kg

    OE Numbers

    ​

    2H0615301A
    2H0615301D

    Technical Library

    View all

    Explore All Technical Docs and Videos

    Checking the Minimum Thickness of a Brake Disc
    Technical Resources

    Linked Vehicles

    See All Linked Vehicles

    The linked vehicles are from brands

    VW

    VW, AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD), 2.0 TSI

    VW, AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD), 2.0 TSI

    2010.12 - 2016.10

    Pickup

    VW, AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD), 2.0 BiTDI 4motion

    VW, AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD), 2.0 BiTDI 4motion

    2011.11 - 2022.05

    Pickup

    VW, AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD), 2.0 BiTDI

    VW, AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD), 2.0 BiTDI

    2010.09 - 2012.08

    Pickup
