FREE PLAY AND TILT IN DUAL MASS FLYWHEEL (DMF) . HOW TO CHECK IT

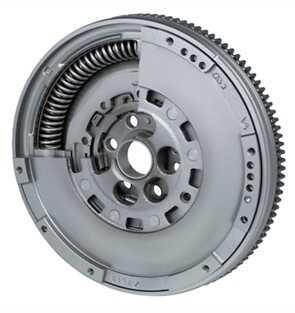

<h3>FREE PLAY CONTROL</h3>

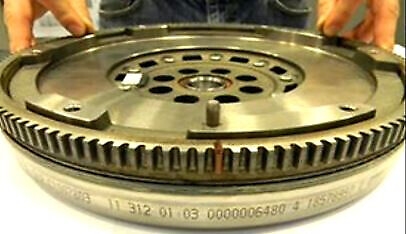

<p>1- When DMF is removed from the car, lay it down on the workbench, secondary flywheel up.</p>

<p>2- Rotate the secondary flywheel anticlockwise until it touches the spring, but without moving the spring.</p>

<p>3- Mark the secondary flywheel position compared to the primary.</p>


<p>4- Rotate the secondary flywheel clockwise until it touches the other spring, again without moving it.</p>

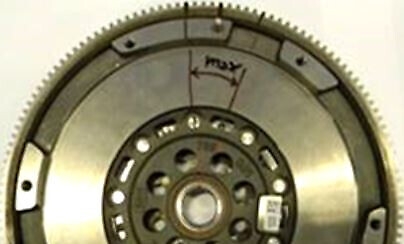

<p>5- Mark the secondary flywheel position and count how many teeth there are between the 2 marks.</p>


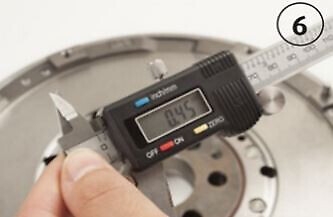

<p>6- Measure the distance between both marks in number of teeths or digress.</p>

<p>7- Check by reference in Valeo's table the maximum.</p>


<h3>TILT CONTROL</h3>

<p>1- Place the dual-mass flywheel on the workbench with the secondary flywheel facing upwards.</p>

<p>2- Place a comparator on the friction surface towards the outer surface (not on the friction surface but on the outer ring).</p>

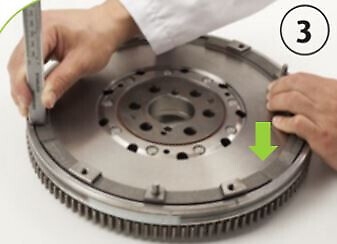

<p>3- Press gently on the opposite side of the secondary flywheel, until it comes into contact with the primary flywheel (3).</p>

<p>4- Reset the instrument / tool.</p>

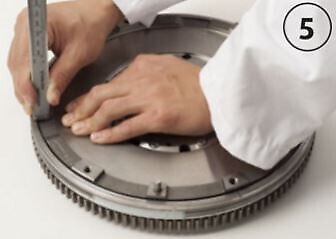

<p>5- Press the side where the comparator is situated and read the value found (peak to peak) (5).</p>

<p>6- Check by reference in Valeo's table the maximum allowed.</p>


<table align="left" border="1" cellpadding="1" cellspacing="1">
	<thead>
		<tr>
			<th>Reference</th>
			<th>Free play (J1)<br />
			Maximum acceptable angle (degrees)</th>
			<th>Up to Starting Ring gear number of teeth (number)</th>
			<th>TILT Maximum permissible value (mm)</th>
			<th>RADIUS FOR TILT MEASUREMENT</th>
		</tr>
	</thead>
	<tbody>
		<tr>
			<td>836161</td>
			<td>21,5</td>
			<td>8</td>
			<td>3</td>
			<td>122</td>
		</tr>
		<tr>
			<td>836055</td>
			<td>16</td>
			<td>5</td>
			<td>1,5</td>
			<td>130</td>
		</tr>
		<tr>
			<td>836174</td>
			<td>21,5</td>
			<td>9</td>
			<td>2,5</td>
			<td>134</td>
		</tr>
	</tbody>
</table>

<p><strong>Our Tech´Care Team can provide to you the full table of measurements by reference Don´t hesitate to request it</strong></p>
